Statistic

Statistics

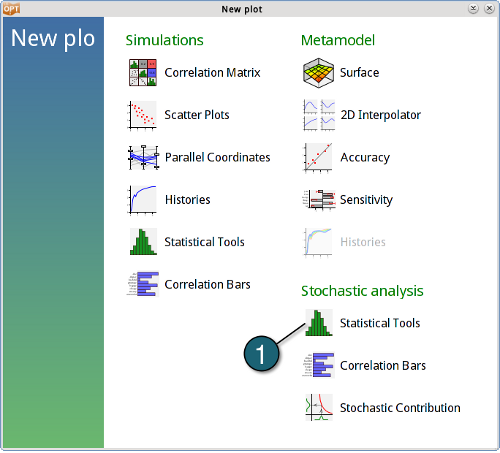

Select Statistical Tools for Type of Plot.

Choose the Response TOP_DISP.
Verify that it is selected to use the metamodel to compute the statistics.
The mean of the response is -228 and the standard deviation is 7.22.

Probability

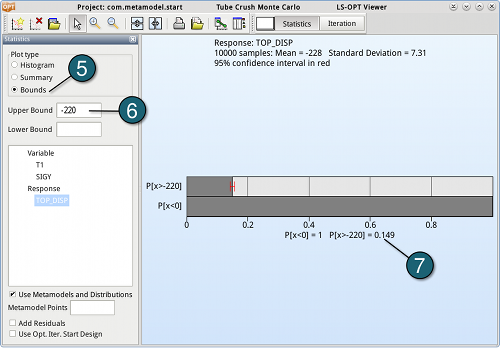

To find out the probability of the response being larger than -220 use the following steps:

Select the Bounds radio button.
Type in -220 as Upper Bound and confirm with enter.
The probability of the response being larger than -220 is 0.149.

→ Use the same steps described above to verify:

The probability of the response being less than -230 is 0.387.
The probability of the response being less than -235 is 0.155.
