Scatter Plots

Scatter plots: View the location of the simulation points

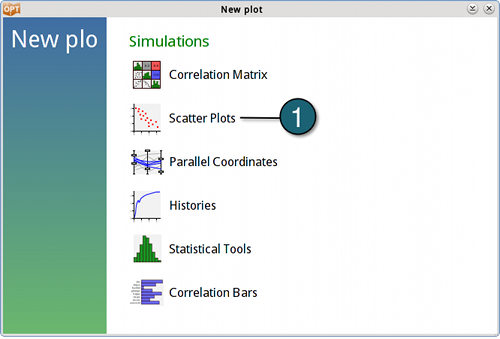

Choose Scatter Plots as Type of Plot.

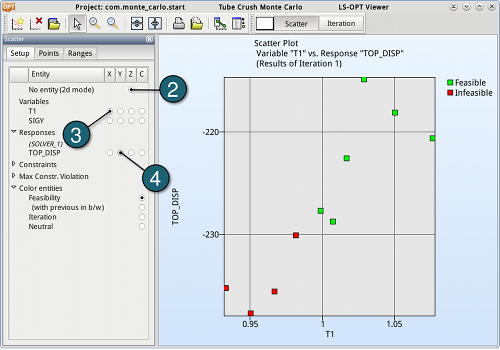

T1 vs. TOP_DISP

For the Z-axis select No entity to switch to the 2d mode.
For the X-axis select the Variable T1.
For the Y-axis select the Constraint TOP_DISP.

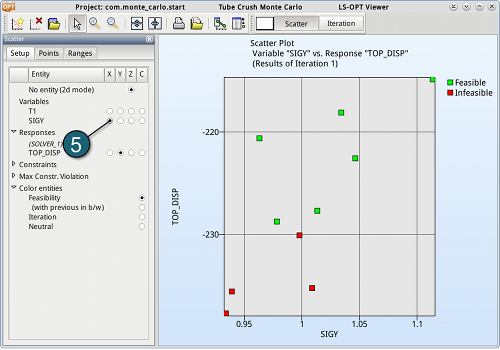

SIGY vs. TOP_DISP

For the X-axis select the Variable SIGY to view the SIGY vs. TOP_DISP plot.
