Perl

Integrating a Perl program as a user-defined solver.

In this example, a Perl program is used as a user-defined solver to calculate the weight and stress responses of a two-bar truss system. The model and load case are displayed below.

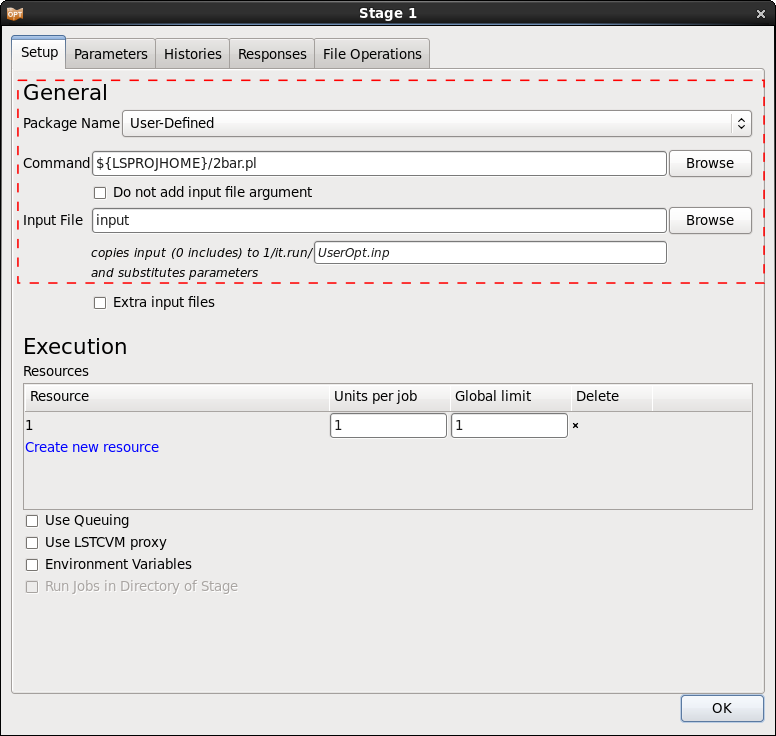

The LS-OPT setup specifying the Perl program as a solver is shown in the Figure below.


The parameters are specified in the input file using the LS-OPT parameter format << >> :

AreaL <<AreaL>>
AreaR <<AreaR>>
Base <<Base>>



The result extraction is performed using GENEX as in the Figure below.


Download

perl.tgz
