Maximum Percent Thickness Reduction

Display the maximum percent thickness reduction of part 1 in LS-PrePost (D3Plot)

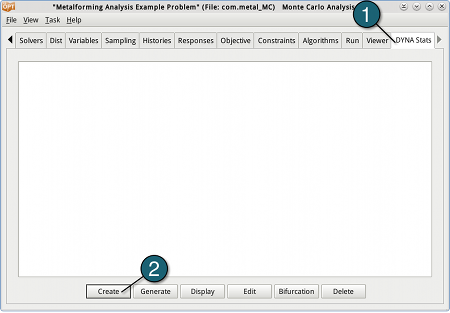

  1. Select the DYNA Stats panel.
  2. Click on Create button.

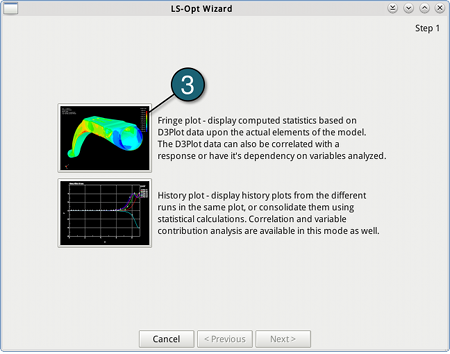

  1. Select Fringe plot for the type of plot.

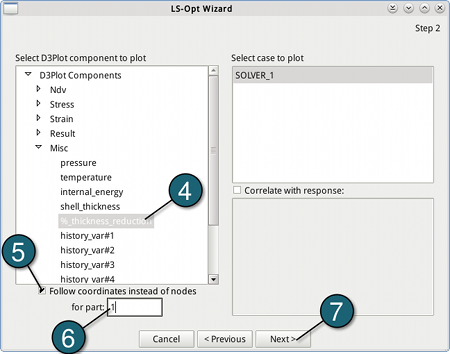

  1. Select D3Plot Components Misc→%_thickness_reduction from the list.
  2. Check the box of Follow coordinates instead of nodes.
  3. For part enter 1.
  4. Go to the next panel.

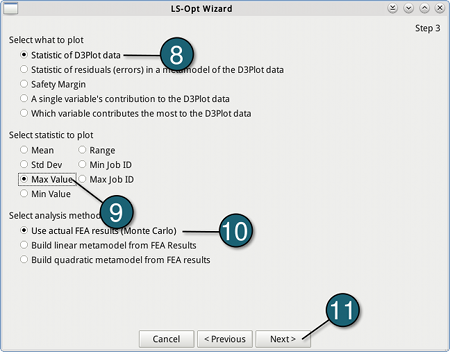

  1. For what to plot select Statistic of D3Plot data.
  2. Choose Max Value as statistic.
  3. Select Use actual FEA results (Monte Carlo) as analysis method.
  4. Go to the next panel.

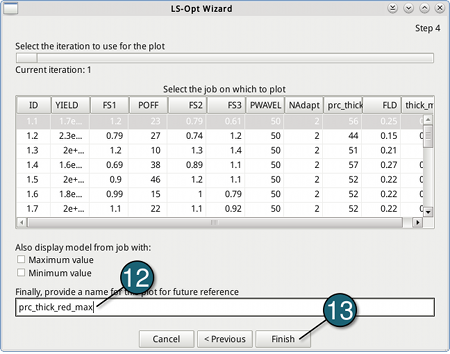

  1. Give a name to this plot, e.g. prc_thick_red_max.
  2. Push the Finish button.

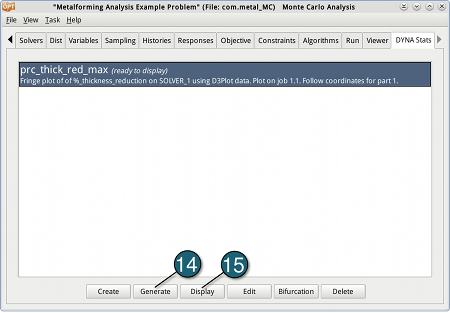

  1. We need to generate the plot after the setup.
  2. Push the Display button to show the plot.

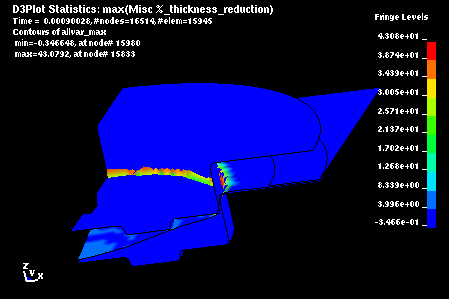

  • This figure shows the maximum value of the maximum percent thickness reduction.
  • The minimum occurs at node 15980 (min=-0.346648) and the maximum at node 15833 (max=43.0792).
