Sheet Thickness

Display the variation of the sheet thickness of part 1 in LS-PrePost (D3Plot)



It follows the way as usual. Note that:dyna_stats_sheet_thick1.png

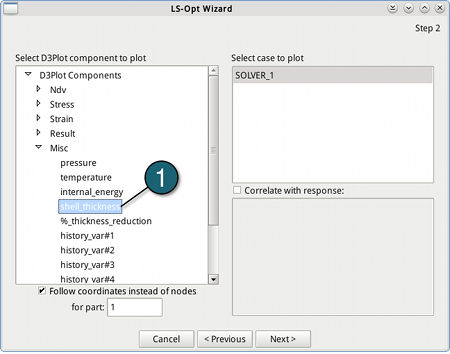

  1. By the first step, D3Plot Components →Misc→shell_thickness.

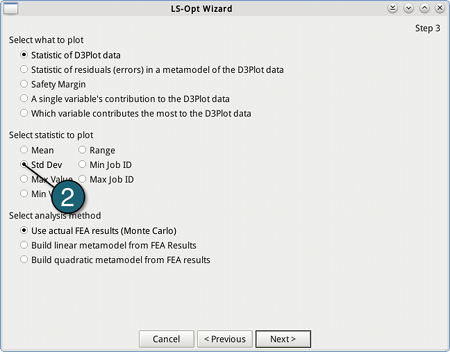

  1. By the second step, choose Std Dev (Standard deviation) as statistic for this time.

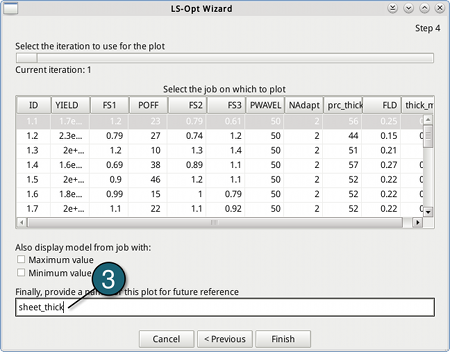

  1. By the last step, give a name to this plot, e.g. sheet_thick.

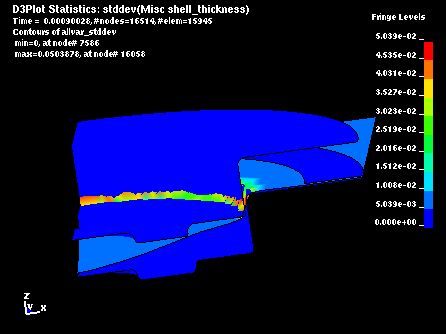

  • This figure shows the standard deviation of the sheet thickness.
  • The maximum occurs at node 16058 (max = 0.0503878).
