Metal Forming Optimization

This example illustrates an optimization of a metal forming process with LS-OPT.

GIF animation forming

Forming

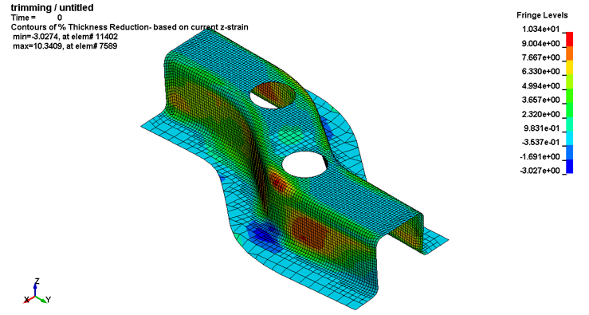

Trimming operation performed

Trimming

GIF animation springback

Springback



This example problem illustrates the following features:

  • Setting up a process consisting of several simulation steps in LS-OPT.
  • How variables in the first stage affect responses in final stage in process.
  • File transfers between stages.



The criteria of interest are the following:

  • Springback of final component.
  • Thinning of metal sheet.



Design formulation:

  • The variables are the starting and ending binder force, linearly varying in between.



Conclusions:

  • LS-OPT easily facilitates influence studies of process variations, introduced at any stage in the process, on the final component.



Problem Solution:

⇒ Solution with LS-OPT
