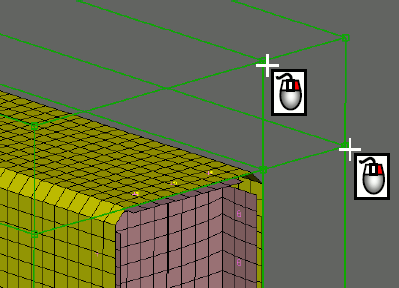

insertIn order to create splits exactly on the rail faces, define Control Points using the CONTROL POINTS> INSERT [NORMAL] function.

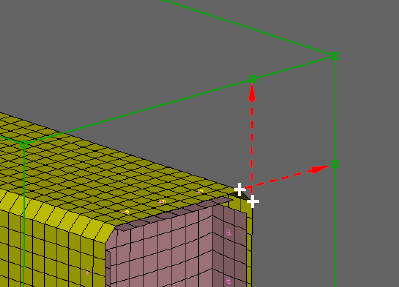

split_1Split the Box at the positions of the created Points. Use the BOXES> SPLIT [User] function and select the created Points with the right mouse button to snap on the Points.

tang









NOTE: Set the Tangency flag in the Options List Window to Off in order to avoid applying tangency constraints when a split is defined.

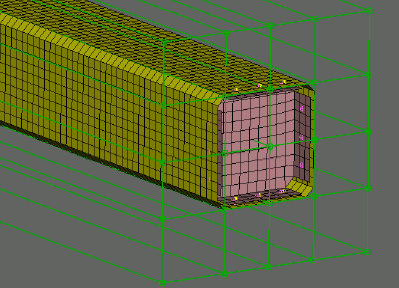

Do the same for all the sides of the rail. Also a split must be created in each one of the two planes of symmetry.
