In the same way define the second length parameter which handles the depth of the vertical embosses. To facilitate the selection of the Control Points align the model to the X-Y plane by picking the F4 key. The parameter’s name is | |

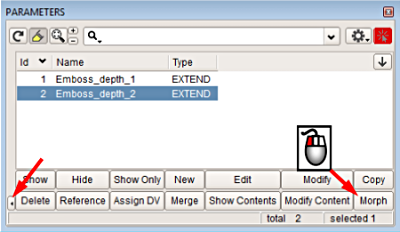

To modify the values of the parameters activate the function CONTROLS>PARAMS. In the Parameters list that appears select the defined parameter and pick the MORPH button. Note: The list's buttons are activated by the small arrow located at the left. | |

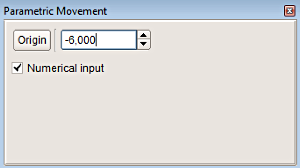

The Parametric Movement window appears where the user can specify a value for the emboss depth.
| |

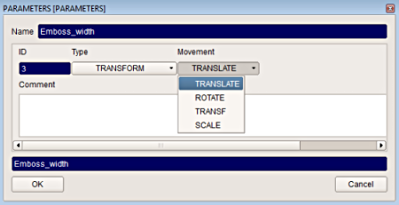

The width of the embosses will be controlled with one Morphing Parameter. Activate the CONTROLS> PARAMS [NEW] function, and select Type “TRANSFORM”, Movement “TRANSLATE”. Optionally, enter the name | |
Select the Control Points of the left side of the embosses as shown at the picture on the right and confirm. In the Axis Definition window that appears define the vector for the translation which in this case is the X-axis. Middle click to confirm. |
