5

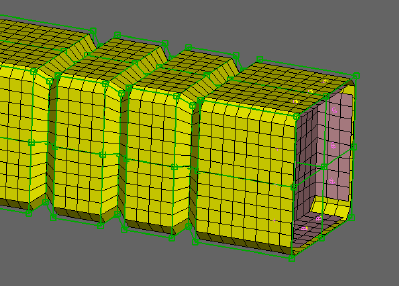

In the same way define the second length parameter which handles the depth of the vertical embosses. To facilitate the selection of the Control Points align the model to the X-Y plane by picking the "F4" key. The parameter’s name is Emboss_depth_2. | |

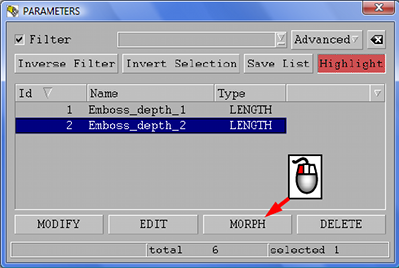

| To modify the values of the parameters activate the function CONTROLS>PARAMS [LIST]. In the Parameters list that appears select the defined parameter and pick the "MORPH" button. | |
The Length Window appears where the user can specify a value for the emboss depth. | |
| The width of the embosses will be controlled with one Morphing Parameter. Activate the CONTROLS> PARAMS [NEW] function, and select Type “TRANSLATE/ROTATE”, Movement “TRANSLATE”. Optionally, enter the name Emboss_width and confirm. | |

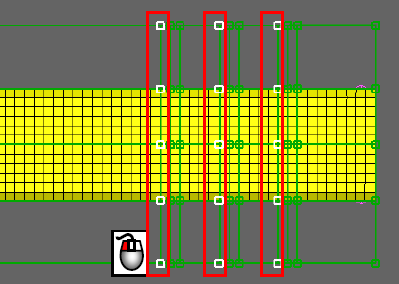

Select the Control Points of the left side of the embosses as shown at the picture on the right and confirm. In the TRANSLATE window that appears define the vector for the translation which in this case is the X-axis. Middle click to confirm. |
