DV 2

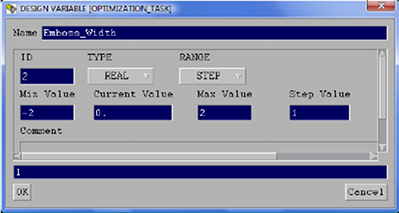

Right click on the second Design Variable Item and select the Edit to open the Design Variable card. Switch the TYPE pull-down to REAL and the RANGE to STEP. With these settings the Design Variable can get the real values between the Min and Max Value by a specified step. Enter the values:

  • Min Value -2
  • Current Value 0
  • Max Value 2
  • Step Value 1
Optionally enter a new name for the Design Variable (Emboss_Width) and press OK to accept the settings.

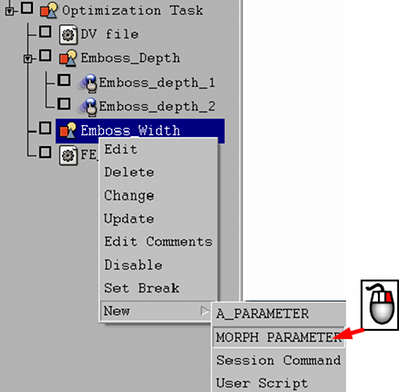

Right click on the Design Variable Item and select the New>MORPH PARAMETER. A new Task Item of type MORPH PARAMETER is created and it is connected with the Emboss_Width Design Variable.

Right click on the new MORPH PARAMETER Task Item and select Edit.

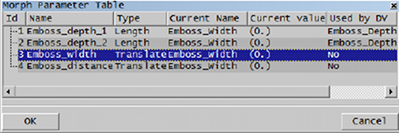

In the window that appears select the third Morphing Parameter and press OK to confirm.task14.png

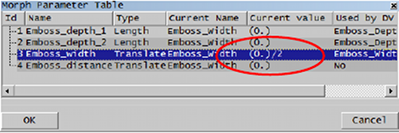

The way that the Emboss_width Morphing Parameter has been defined leads to the following result: Morphing the above parameter by 1 mm moves both edges of the emboss to the opposite sides resulting to a movement of 2 mm. To overcome this problem a calculation can be added between the Design Variable and the Morphing Parameter.task15.png

Open again the Morph Parameters window. (Right click on the new MORPH PARAMETER Task Item and select Edit).

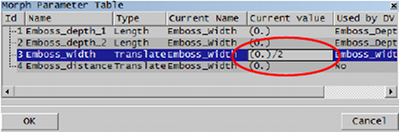

Double click on the Current Value field of the third parameter. The current value is displayed which is 0. Enter “/2” to divide by two the current value.


Press OK to confirm.

The Design Variable that controls the emboss width is ready.
