DV 3

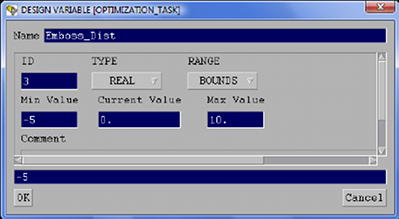

The third Design Variable will control the distance between the embosses. Create a new Design Variable Task Item and Edit it. Leave the TYPE pull-down to REAL and the RANGE to BOUNDS. Enter the values:

Min Value -5
Current Value 0
Max Value 10

Optionally enter a new name for the Design Variable (Emboss_Dist) and press OK to accept the settings.

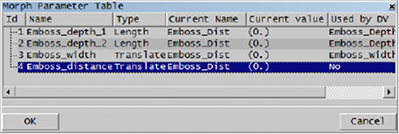

Right click on the Design Variable Item and select the New>MORPH PARAMETER to create such Task Item. Right click on the new MORPH PARAMETER Task Item and select Edit. In the window that appears select the fourth Morphing Parameter and press OK to confirm.

The Design Variable that controls the emboss distance is ready.
