FE File

A last Task Item is used to create an output of the model in FE format.

Right click on the FE-output Task Item and select the EDIT function.task41.png

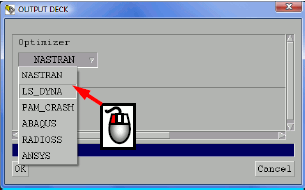

The OUTPUT DECK window appears. Select the LS_DYNA option from the pull-down to output the model in this format. Press OK to confirm.task42.png


The file manager window opens. Select the path and filename for the output file and confirm. In this example the name of the file is rail.key.

NOTE: Even if the input file is defined with an absolute path, LS-OPT will overwrite this path since in every iteration a new directory will be created containing all the data of the experiment.

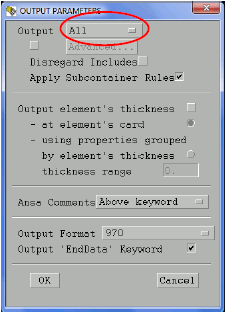

The OUTPUT PARAMETERS window opens. Select the options for the LS-DYNA file and confirm. In this example the user could use the “All” option to output the whole model.task44.png

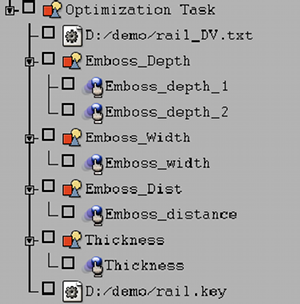

The FE Output Task is defined and the path is indicated to the Task Item name. However, the file is not yet created and saved. The file will be created when the Optimization Task runs in the Execution mode.
