Run

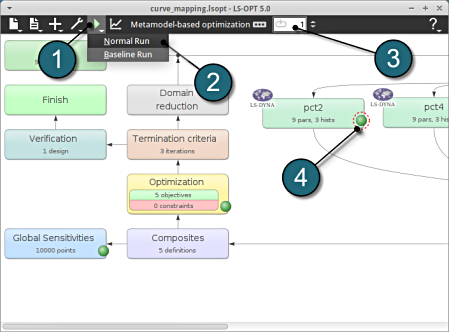

Run LS-Opt.

  1. Select the Run button from the Control Bar.
  2. Push Normal Run for execution.
  3. The user can get information on the status of the current iteration during execution.
  4. At every stage the user has an option to view the progress of the program execution by selecting the LED on the Stage tabs.

As seperate window Progress opens up.

run_1

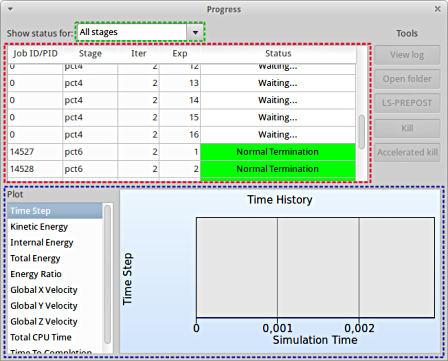

Progress

  • The Show status for: choice has been changed to All Stages.
  • The progress bar gives information on the status and several other details of the optimization progress.
  • Underneath the status, the user has the option to view various plots of the computed values during execution vs the simulation time.

After completion of the program execution the user can view the results.

run_2

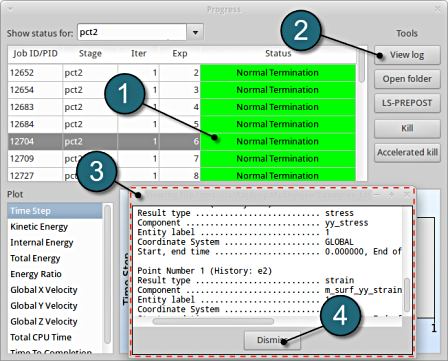

View Log

  1. Select the simulaiton point for which the log file is desired.
  2. Click on the View log button.
  3. A new window open containg the solver output, in this case the LS-DYNA output.
  4. Select the Dismiss button to close the window and proceed.
run_3
