Parameters

Design Parameters.

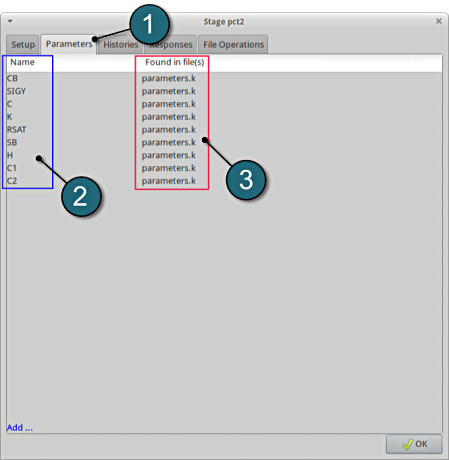

  1. Select the Parameters tab.
  2. The Name of the various design parameters are listed here.
  3. The created parameters are read in from the file parameters.k.
  4. Select OK to proceed.



  • parameters.k is shown below for reference.

stage_para

*PARAMETER
rCB,650.0
rSIGY,528.0
rC,110.0
rK,30.
rRSAT,500.0
rSB,166.0
rH,1.0
rC1,0.01
rC2,0.35
