Responses

Now define the results to be extracted from the solver output database (to be used as objectives or constraints in the optimization phase) using the interfaces available in the Histories (curve data) or Responses (scalar values) tab, respectively.

Responses

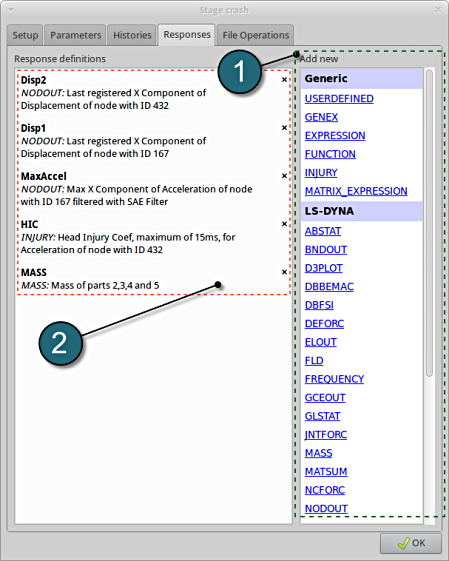

Select a response type from the several options available in Add new column located on the right side. A response can be a result of a mathematical operation applied to a time history curve or a previously defined response, or can be directly extracted using the standard LS-DYNA interfaces or a user-defined interface.

Upon selection a seperate window appears where the user can define the reponse properties.

The responses defined can be reviewed later for alterations if necessary.
