Stats

In the DYNA stats panel you can compute various statistics of the LS-DYNA d3plot results and LS-OPT history data for viewing in LS-PREPOST on the FE model. These statistics show:

The variation of the LS-DYNA results due to the variation of the design parameters.
The variation of the LS-DYNA results due to bifurcations and other stochastic process events.

Select the Fringe Plot.

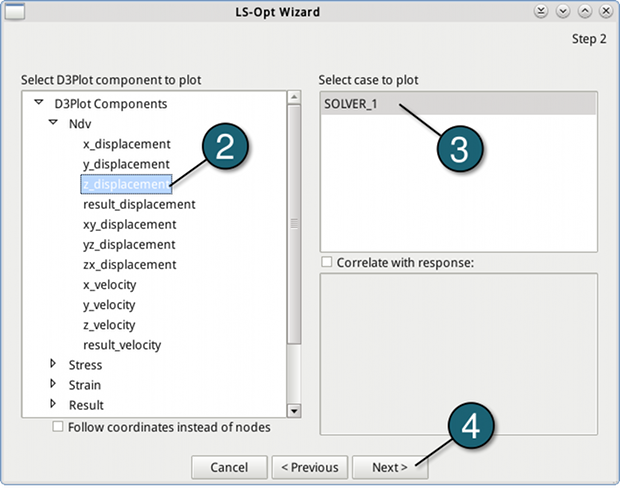

Select a D3Plot Components, e.g. D3Plot Components→Ndv→z-displacement.
Choose a Case.
Go to the next panel.

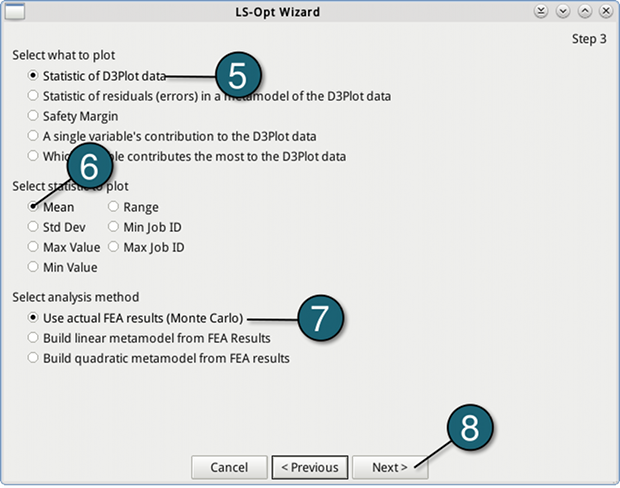

Select what to plot.
Choose a Statistic value, e.g. Mean or Standard Deviation of the z-displacement.
Select the Task, e.g. Monte Carlo.
Go to the next panel.
Select the Iteration, e.g. the first iteration.
Give the plot a Name.
Finish the setting.

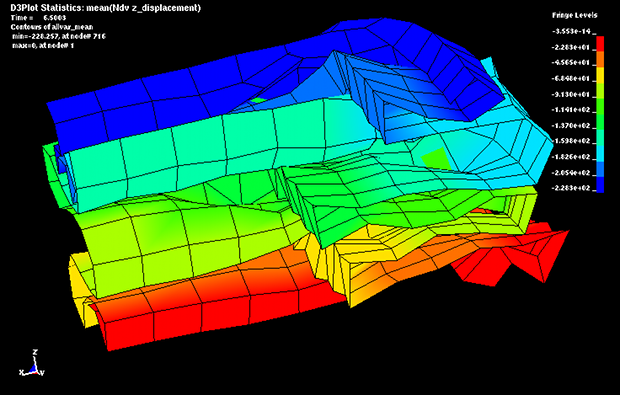

Fringe Plot of the z-displacement of a steel tube being crushed
