Fringe Plot

Display the Statistics in LS-PrePost (D3Plot)

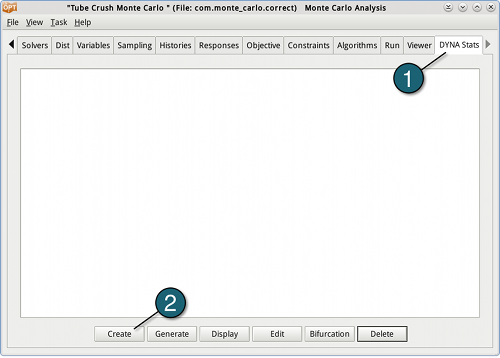

  1. Select the DYNA Stats panel.
  2. Click on Create button.

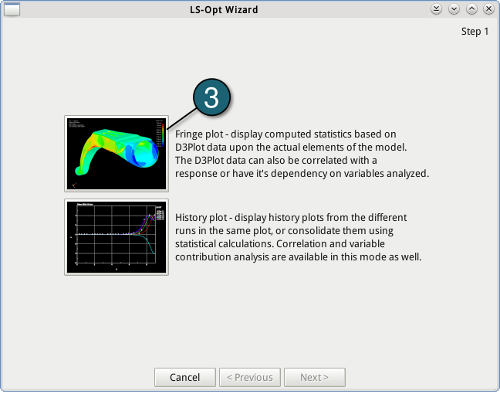

  1. Select Fringe plot for the type of plot.



























Display the Statistics in LS-PrePost (D3Plot) - Mean

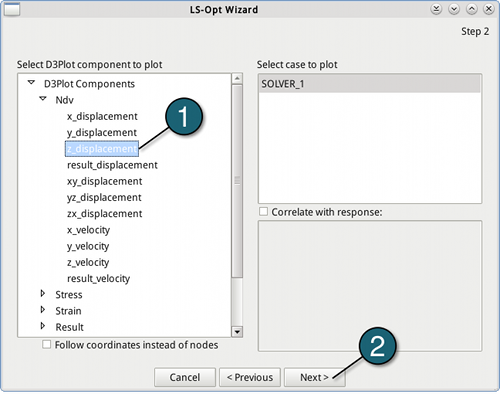

  1. Select z_displacement from the list.
  2. Go to the next panel.

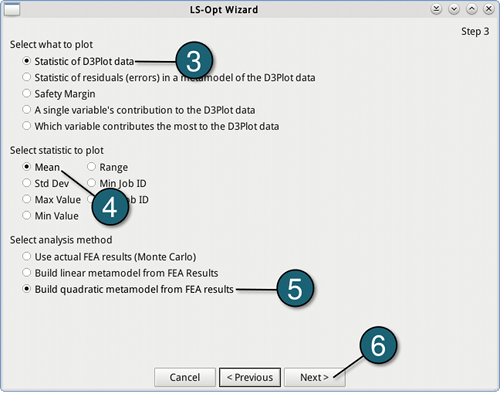

  1. For what to plot select Statistic of D3Plot data.
  2. Choose Mean as statistic.
  3. Build Quadratic Metamodel instead of using actual FEA results.
  4. Go to the next panel.

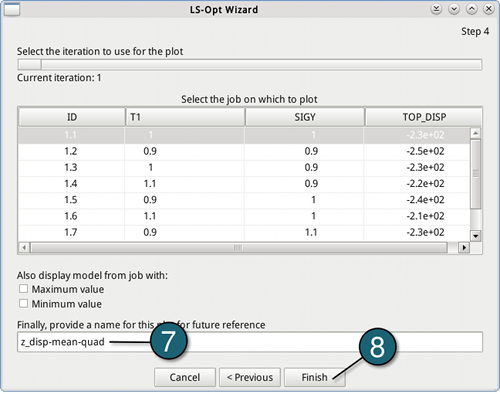

  1. Give a name to this plot, e.g. z_disp-mean-quad.
  2. Push the Finish button.




Metamodels can be used to predict the statistics of the responses. These metamodels (approximations) are computed for all the results for all nodes for all time steps.

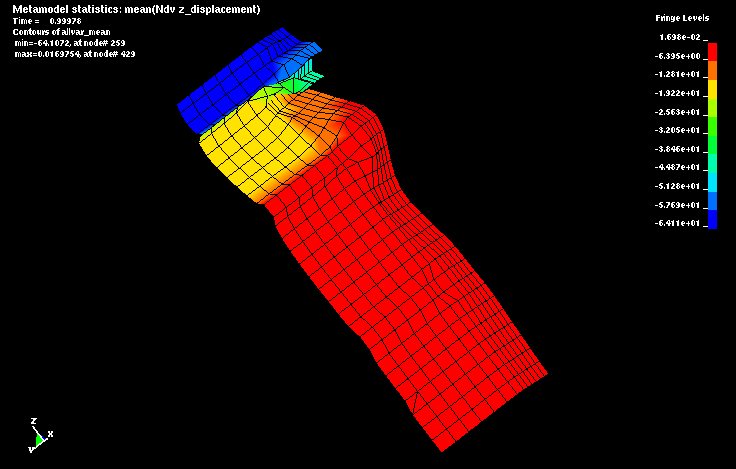

The figure shows the mean of the z-displacement at time 0.99963s.

→ The minimum occurs at node 259 (min=-64.1072) and the maximum at node 429 (max=0.0169754).

Display the Statistics in LS-PrePost (D3Plot) - Standard deviation

  • It follows the way above, except:

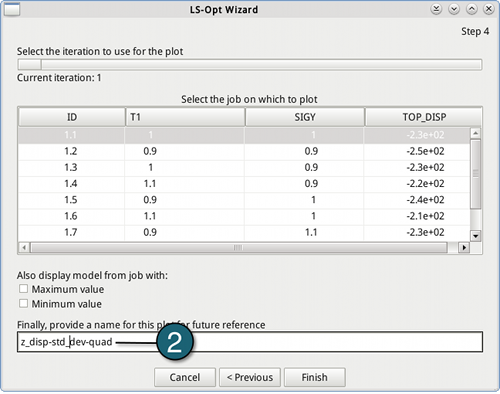

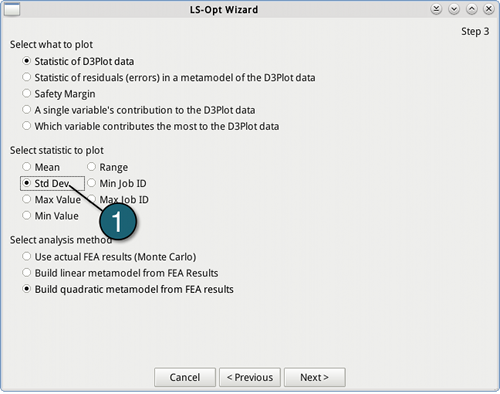

  1. By the second step, choose Std Dev (Standard deviation) as statistic.























  1. By the last step, give a name to this plot, e.g. z_disp-std_dev-quad.

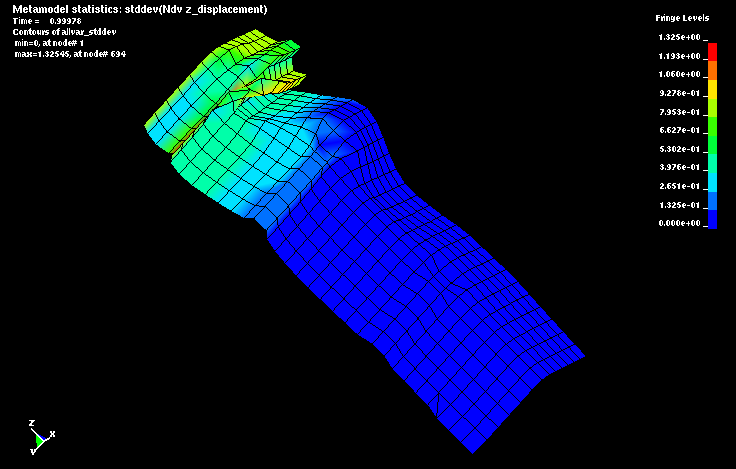

The figure shows the standard deviation of the z-displacement at time 0.99978s.

→ The maximum occurs at node 694 (max = 1.32686) where the deformation is large.
