History Plot

Display the Statistics in LS-PrePost (History)

  1. Select the DYNA Stats panel.
  2. Click on Create button.





















  1. Select History plot for the type of plot.

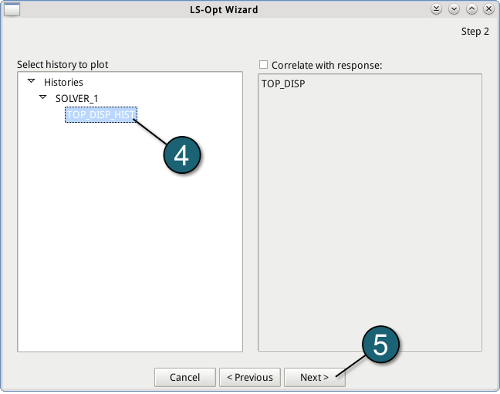

  1. Select TOP_DISP_HIST from the list.
  2. Go to the next panel.

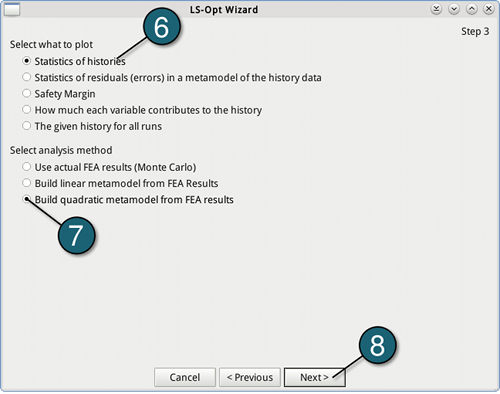

  1. For what to plot select Statistic of histories.
  2. For analysis methed, choose Build quadratic metamodel from FEA results.
  3. Go to the next panel.

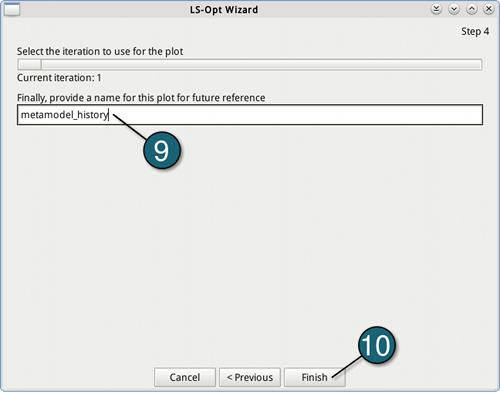

  1. Give a name to this plot, e.g. metamodel_history.
  2. Push the Finish button.






Statistics of the LS-OPT History

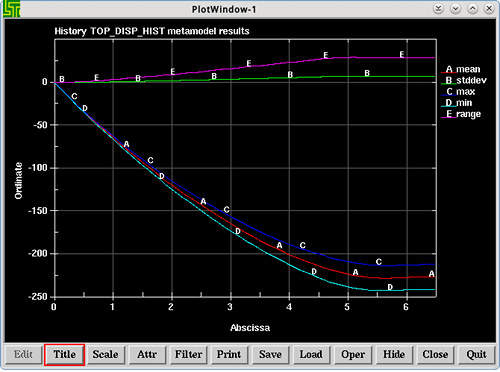

→ The figure shows the statistics of the TOP_DISP_HIST history (z-displacement at node 486).
